Machine Specification:

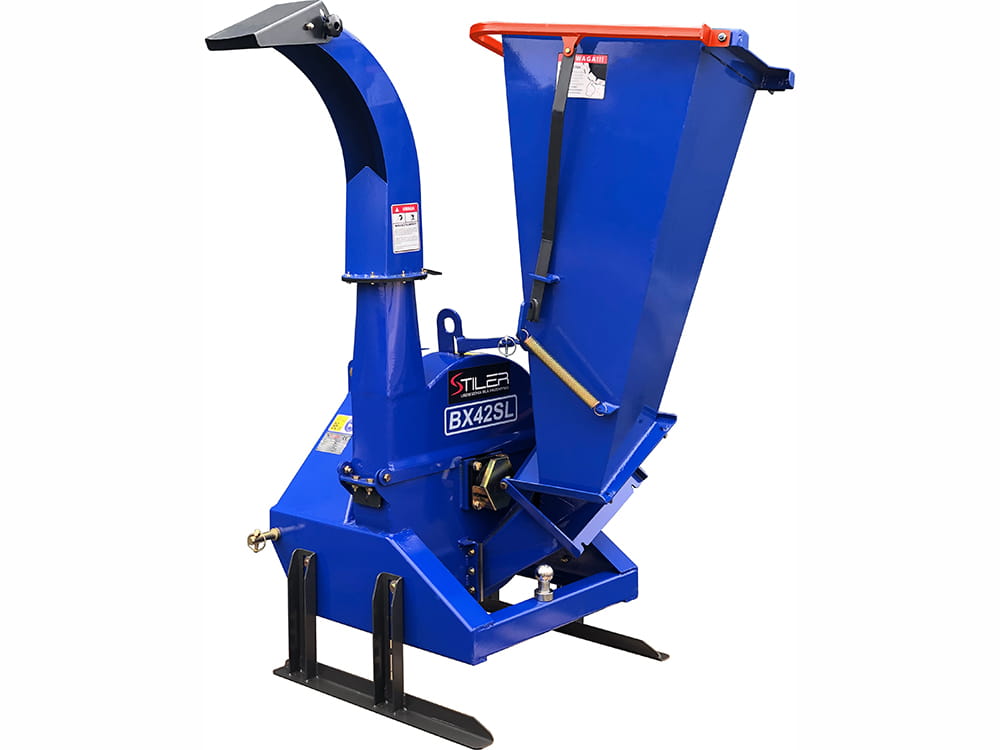

The CHIPPER Stiler BX42 is used to crush branches and tree trunks with a diameter of up to 10 cm , and with suckers up to 25 cm.
The chipper with a three-point suspension system (TUZ) is designed to work with a farm tractor with a minimum power of 18 HP .
The drive is transmitted through the PTO shaft of the tractor. The produced wood chips are thrown out through a 360 ° pipe rotated in relation to the chopper base.
A massive shield equipped with 4 knives, both sides sharpened + one versus a knife.
In addition, we equip our shield with breakers (shovels) that crush the obtained chop to 20-60 mm.
The chipper is additionally equipped with blade ventilation.
The drop funnel can be folded for transport.
All bearings protected against dust, felling, etc.
All hooks, bolts etc. included – you buy a machine ready for work!
The rotor design allows long-term work without loading the tractor.
Optionally, a special power take-off shaft.
Model: BX42
Size of shredded material: 10cm diameter (maximum 25cm with roots)
Drive system: Drive from tractor engine transmitted by PTO
Tractor minimum power: 18 KM
Impeller size: 63cm
Number of cutting knives: 4 + 1 Counterattack
Knife type: Hardened tool steel CR12
Rotor weight: 43 kg
Material feeding mechanism: Manual operation
Fastening system: Three-point suspension system (three-point linkage)
Dimensions (with the batch funnel folded): 101cm L x 106cm W x 152cm W

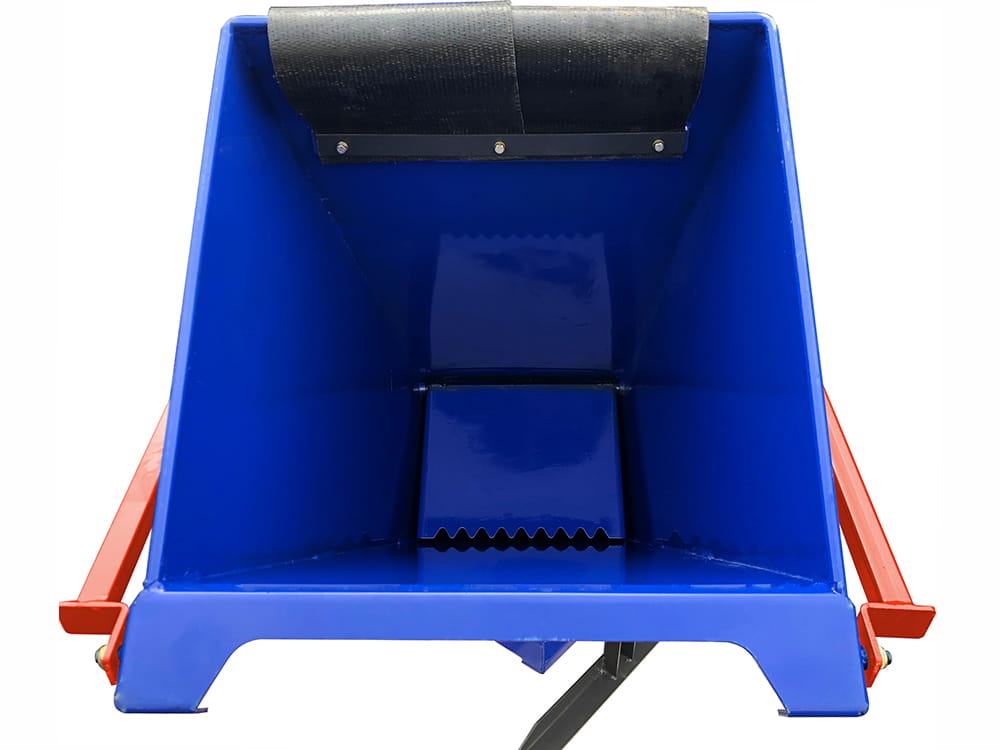

Batch hopper: 50 x 50cm
Rotation range of the ejection pipe: 360
Height of the discharge pipe: 152cm
Rated revolutions per minute / rated revolutions: 540-1000
Chipper weight: 230 kg
