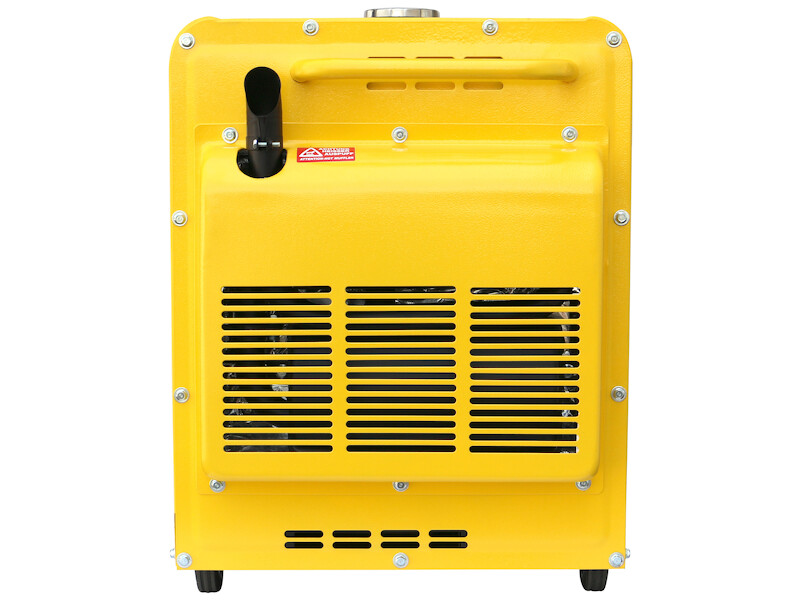

Soundproof version
1-cylinder 418ccm 4-stroke diesel engine with 5.7kW
3-phase 400V industrial generator part with electronic voltage regulation (AVR regulated)
1x 400V, 1x 230V connection (please note the note below for single-phase use)
Large 15 liter tank for about 8 hours of operation at full load
Automatic engine stop at low oil pressure
Electric start including starter battery
Integrated operating hours counter
EAN Code 9009970017668
model GD4SS-3-6000-5EBWZ
generator type 3-phase synchronous generator with brushes
nominal voltage 400V (230V), 50 Hz
Peak power (at V) 5.5 kVA / 4.6 kW (400V), 1.8kVA at 230V
Continuous power (at V) 5.0 kVA / 4.1 kW (400V). 1.7kVA at 230V
voltage regulation electronic
validation Motor protection switch 3x 8,1A
Hour meter integrated
engine type 418 cc 1-cylinder diesel engine, 4-stroke, air-cooled, direct injection
fuel diesel
start system Electric start (starter battery included)
tank capacity 15 liters
fuel consumption
Idling : 0,6 l / h 2,3kW Load: 1,1 l / h
4,3kW Load: 1,9 l / h
exhaust class Stage-V, EU / 2016/1628
wheelset included
Dimensions (WxDxH) 920 x 540 x 700 mm
Weight 142 kg
volume LWA 91dB (A) / 75dB @ 7m
