1-cylinder 4-stroke diesel engine with 306cc displacement
Electric start version with alternator and battery charger (engine can also be started by manual start)
Max. 4.5 kW at 3,600 rpm
Conical motor shaft, diameter 23,6mm / length 34mm
3.5 liter diesel tank for approx. 2.3 hours of operation at full load

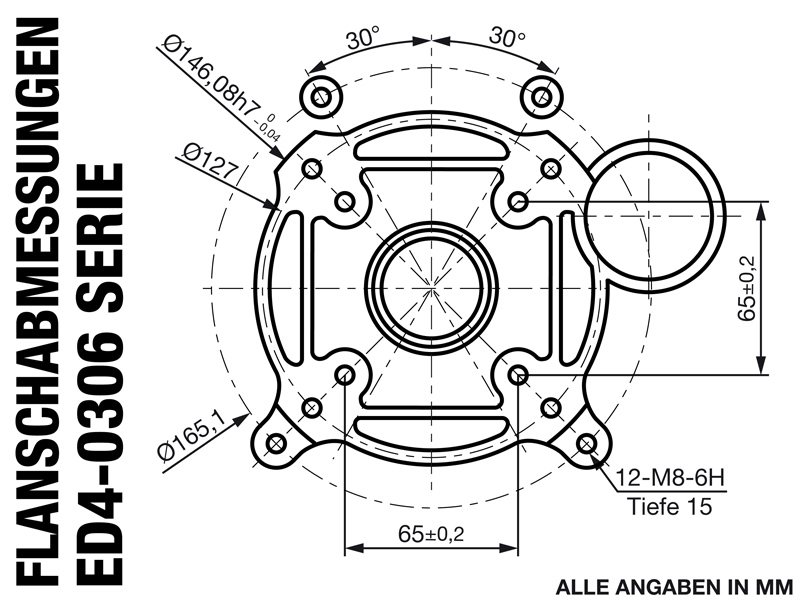

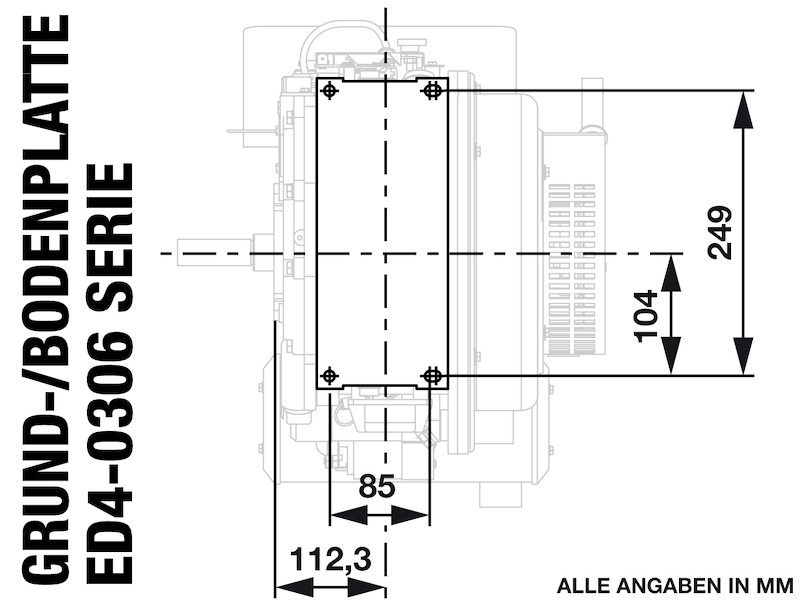

Installation identical to Yanmar L60 L70
EAN Code 9009970001612
model ED4-0306-E
grade 1-cylinder 4-stroke diesel engine air-cooled
capacity 306 ccm
Bore / stroke 78/64 mm
Power at 3000 rpm Max. 4.1 kW, cont. 3.7 kW
Power at 3600 rpm Max. 4,5 kW, cont. 4,0 kW
power take-off over crankshaft
direction of rotation counterclockwise
Speed governor governor
cooling system Forced cooling via fan and air control system
fuel diesel
Consumption at full load = <1.49 liters / h
tank capacity 3.5 liters
Oil volume 1.1 liters
start system Manual and electric start (starter battery not included)
Dimensions 430 x 390 x 460 mm
Weight 38 kg
volume 85 db (A) at 4 meters
