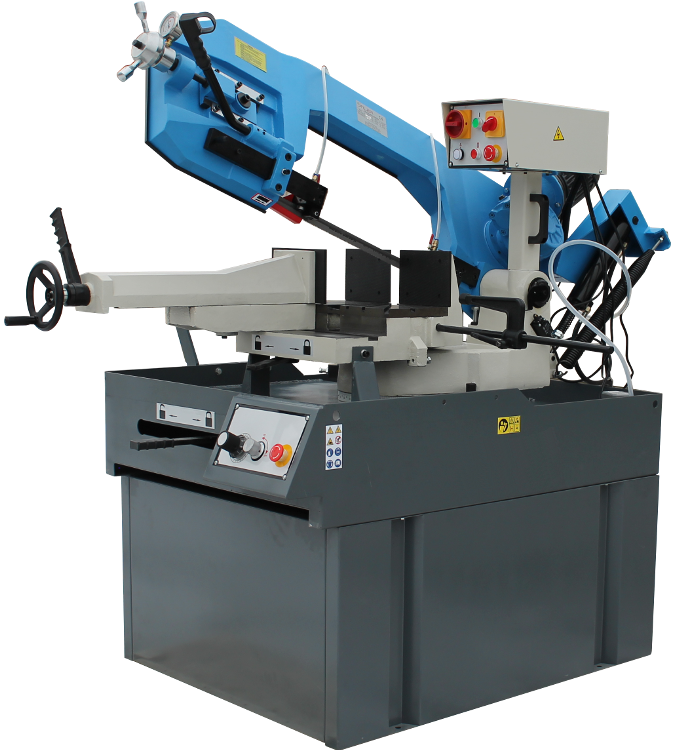

The G5027 band saw enables cutting in a plane perpendicular to the axis of the cut material or at any angle in the range from -45 to +60 degrees.
Feed during cutting takes place by gravity on the principle of oil flow in a two-chamber hydraulic cylinder. The appropriate arm falling speed is set using the regulator located on the control panel.
Model: G5027
Power: 1.1 / 2.2 kW
Power supply: 400V, 3 phases
Cutting band size: 2950x27x0.9 mm
Arm drop adjustment: Hydraulic cylinder
Belt linear speed: 36/72 m / min
The distance from the base of the vice to the ground 940 mm
Weight: 480 kg
Tabula:
- The cutter arm is made of a homogeneous iron casting with a 27 mm wide cutting band used in this cutter. enables full execution of multi-series cuts of both profiles and full materials.
- G5027 allows cutting a whole range of materials ranging from black steel, pipes, profiles, channel sections to high-grade steel, stainless steel, acid steel and solid materials.
- The tape guides are equipped with special carbide inserts and bearings. This has a huge impact on the running of the tape, its service life, straightness, accuracy and quality of the cut.
- In the lower arm position (after cutting the material) the cutting band drive and cooling system are switched off automatically.
- Safety is ensured by the cutting band covers and micro switches stopping the engine after the cutting cycle or opening any of the covers, the additional protection consists in switching off the automatic cutter if the cutting band breaks.
- The engine is equipped with new generation thermal fuses.
- The drive from the engine to the belt driving the belt is transmitted by a maintenance-free worm gear.
- Roll feeders – as an additional option – available at our other auctions.
- The G5027 band saw machine enables cutting in a plane perpendicular to the axis of the cut material or at any angle in the range from -45 to +60 degrees.
- Feed during cutting takes place by gravity on the principle of oil flow in a two-chamber hydraulic cylinder. The appropriate arm falling speed is set using the regulator located on the control panel.
- The cutter arm is made of a homogeneous iron casting with a 27 mm wide cutting band used in this cutter. enables full execution of multi-series cuts of both profiles and full materials. The vice is placed in an adjustable bed and is equipped with a quick clamp.
- G5027 allows cutting a whole range of materials ranging from black steel, pipes, profiles, channel sections to high-grade steel, stainless steel, acid steel and solid materials.
- The tape guides are equipped with special carbide inserts and bearings.
This has a huge impact on the running of the tape, its service life, straightness, accuracy and quality of the cut. - Includes roll for feeding cutting material and bumper length of cut material.
- The speed of the cutting band is adjusted on the cutter control panel. There are two speeds to choose from: 36 and 72 m / min.
- In the lower arm position (after cutting the material) the cutting band drive and cooling system are switched off automatically.
- Safety is ensured by the cutting band covers and micro switches stopping the engine after the cutting cycle or opening any of the covers, the additional protection consists in switching off the automatic cutter if the cutting band breaks.
- The engine is equipped with new generation thermal fuses.
- The base is built-in as a rigid body welded from steel sheets. Inside there is a separate coolant tank with an electric pump and a large drainage tank.
- The shape of the upper part of the base is a bath for draining coolant and catching chips formed during cutting of the material.
- A cast iron construction table with a rotating arm and a control panel on a separate pedestal are attached to the base.
- In the cutting process, the main cutting movement is moving the cutting band.
- The drive from the engine to the belt driving the belt is transmitted by means of a worm gear.
