Product description

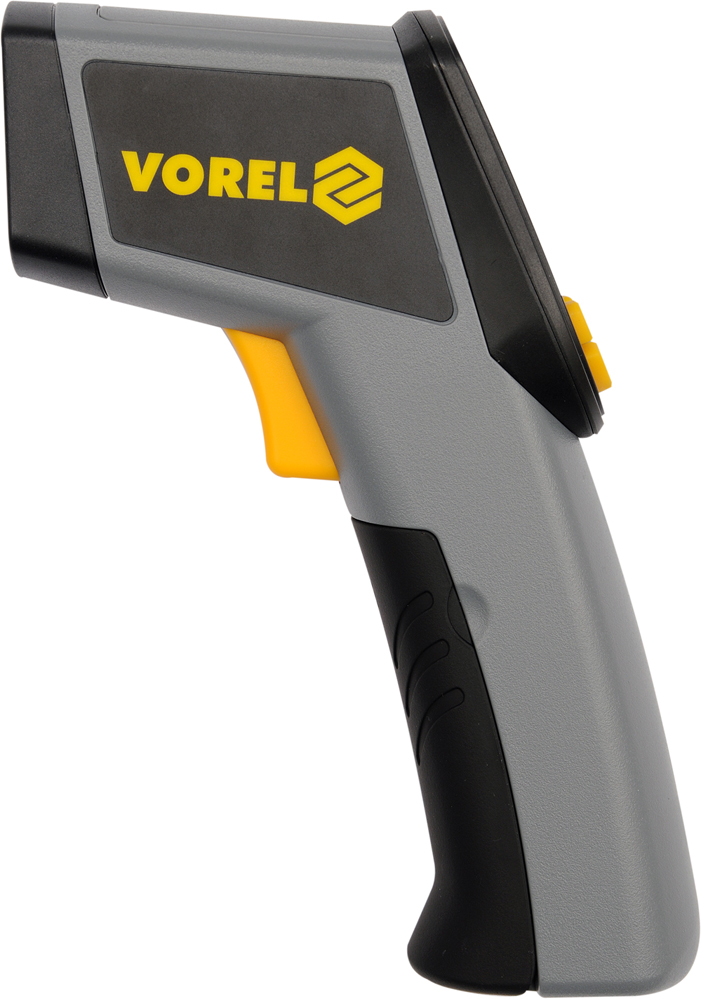

Vorel Infrared Thermometer is a portable device that allows you to measure temperature without having to contact the measured object. Thanks
a wide range of measured temperatures, battery power and low weight, the instrument can be used in
various applications.
The instrument is delivered complete and does not require mounting.
– Temperature measurement range [° C] -50 ÷ 650
– Measurement accuracy ± 2 ° C (± 2%) for T> 0 ° C
± 3 ° C (± 2%) for T≤0 ° C
– Repeatability of measurement 1% of reading / 1 ° C
– Reading resolution [° C] ± 0.1 ° C
– Response time [ms] 500
– Spectral sensitivity [μm] 8 – 14
– Optical resolution (D: S) 12: 1
– Coefficient 0.1 – 1
– 9 V power supply (6F22)
– Battery life [h] approx. 50 (with laser off and backlight)
– Automatic shutdown [s] 30
– Dimensions [mm] 135 x 36 x 170
– Weight (without batteries) [g] 168
– Laser class II
– laser wavelength [nm] 655
– Laser power [mW] <1
- Operating temperature [° C] 0 ÷ 40
- Relative humidity RH 75% (non-condensing)
Application / Application
For quick, remote temperature measurements in the range of -50 ÷ 650 [° C]
How to use

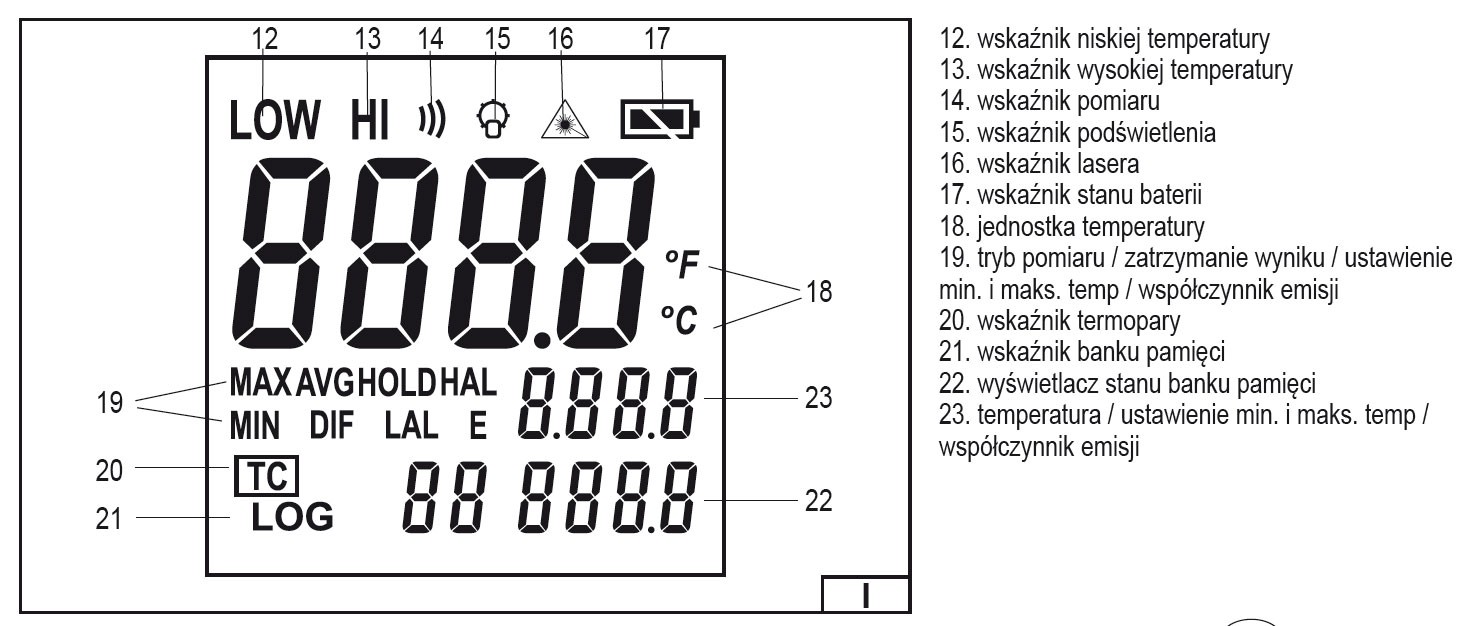

Point the instrument toward the object to be measured, then press and hold the switch. The temperature display will be
visible on the LCD screen after about half a second.
The accuracy of the display depends on the distance from the object and the size of the object being measured. To get the most accurate
Measure the measurement principle as shown in Figure (IV), where the ratio of the diameter of the measuring disc to the distance is to be used
The measurement is equal to the optical resolution of the instrument. The measured object is larger than the selected measuring disc.
The most accurate measurements are obtained when the object is at least twice as large as the surface of the disc
measurement.

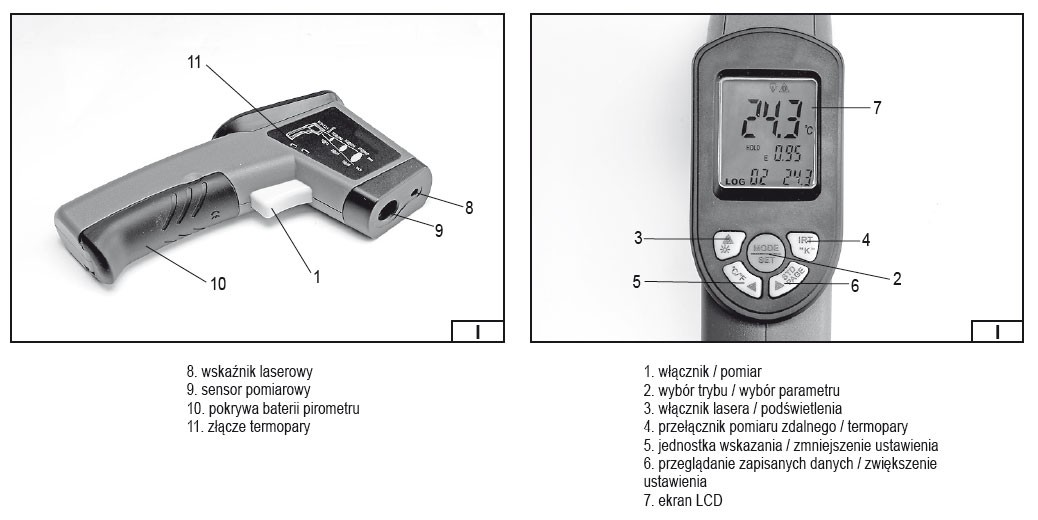

The K type thermocouple, which is not supplied with the product, can be connected to the instrument. After connecting the thermocouple to the socket on the side
Press the "IRT / K" button so that the symbol "TC" appears on the display and carry out the measurement.
using a thermocouple. Read the information supplied with the thermocouple before starting the measurement.
The temperature of small objects should be measured from a short distance. Make sure there are no obstacles (glass,
plastic, steam, etc.) between the pyrometer and the object being measured.
Technical data
Index number 81762
EAN 5906083817625
Marka Vorel
PCS unit
Gross Weight (kg) 0.4000
Master Carton MC 20
D_S=12:1;
TEMPERATURE RANGE: -50°C~650°C;
EMISSIVITY: 0.1-1 ADJUSTABLE;
LASER WAVE LENGTH: 630-660NM;
LASER POWER: r<1mW;
TEMPERATURE FOR "K" THERMOCOUPLE: -99°C~1370°C
